Innovative AQ sensors

Air-quality monitoring

Distributed sensor networks across Athens and Greece

APCG operates urban air-quality sensor networks that provide near real-time information on particulate and gaseous pollutants.

The Thissio Air Monitoring Station serves as the reference site for the evaluation and calibration of the monitoring systems deployed across the Greater Athens Area and other parts of Greece.

Live air-quality data PANACEA infrastructure
100+ PM2.5 monitors across Greece
25+ Sensors in Greater Athens
Hourly Online data reporting
Calibrated Against reference instruments
PANACEA network

Near real-time PM2.5 monitoring

Through the YPATIA operational unit, APCG has installed more than 25 PurpleAir PA-II optical monitors at residential locations throughout the Greater Athens Area.

The PANACEA national research infrastructure supports the expansion of this network across Greece. Measurements from more than 100 monitors are available through the APCG online visualisation platform.

Learn about YPATIA

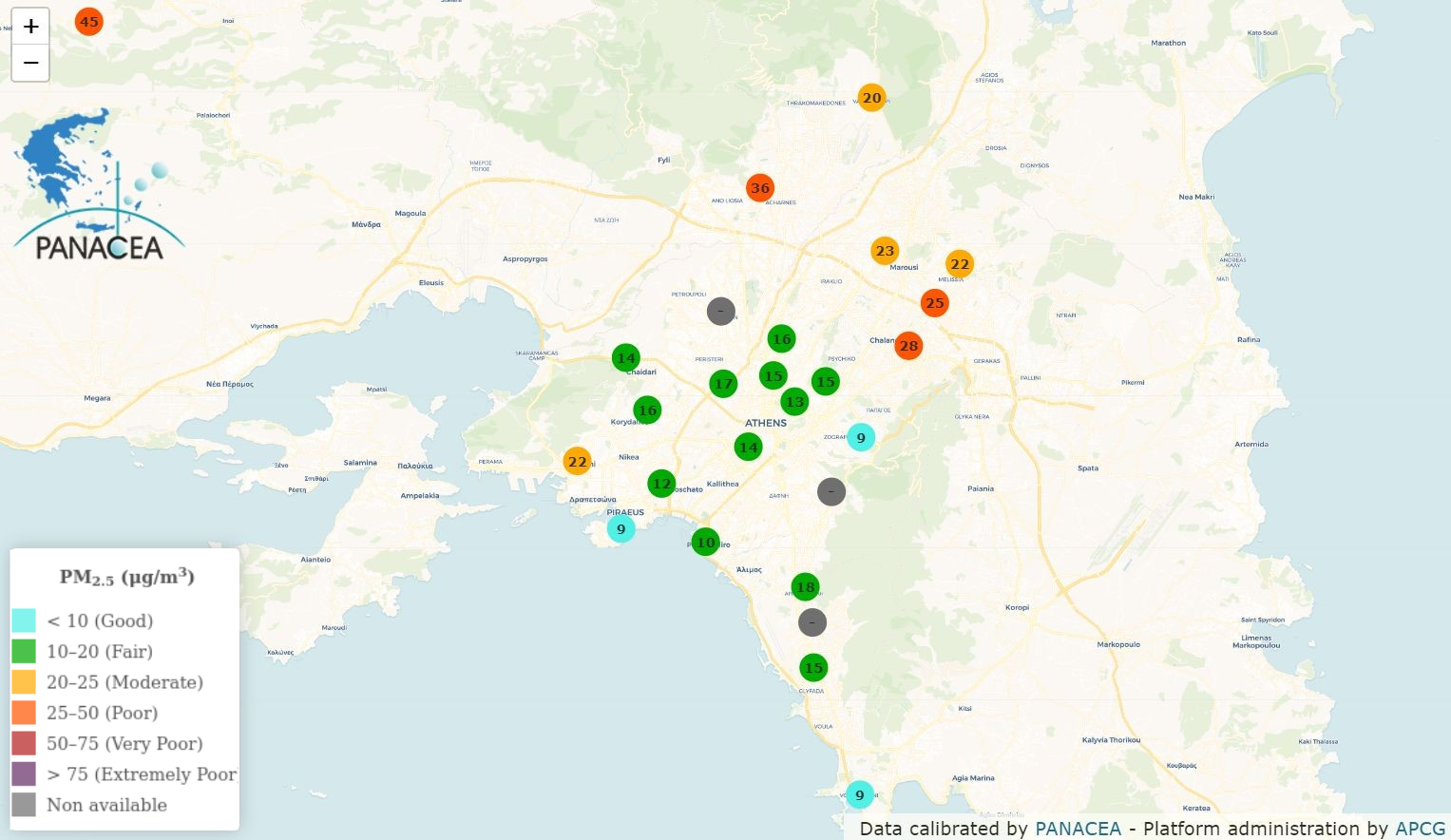

PANACEA PM2.5 sensor monitoring network in Greece
PM2.5 monitoring network visualised through the PANACEA platform.

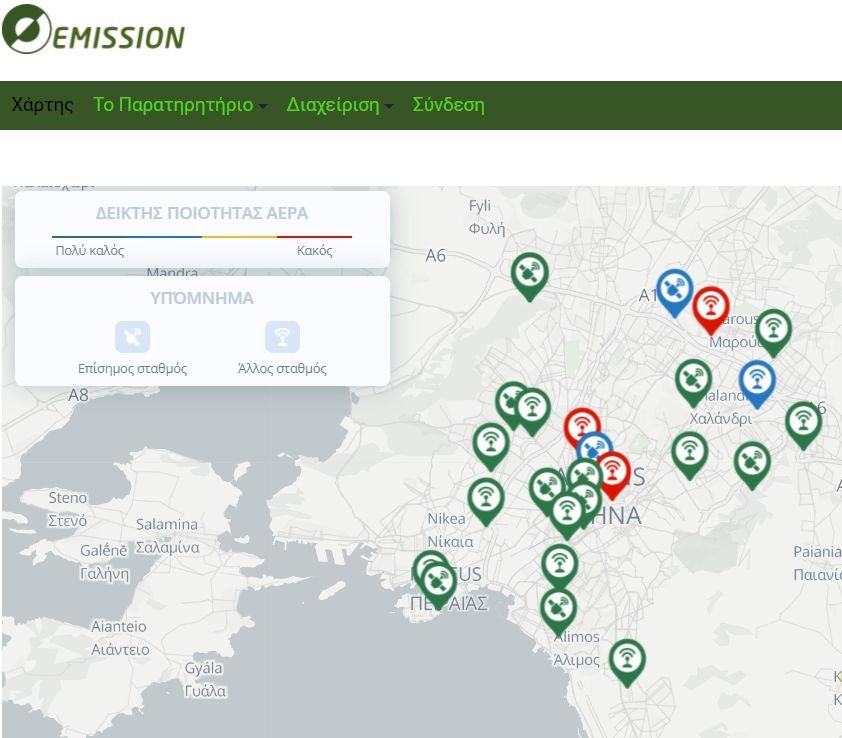

EMISSION air-quality sensor network in Athens
EMISSION monitoring network for gaseous and particulate pollutants in Athens.
EMISSION project

Multi-pollutant urban monitoring

APCG participated in the EMISSION national project, establishing monitoring locations across the Athens basin using clusters of medium- and low-cost sensors.

Six AQMesh systems measure NOx, O3, CO, PM2.5 and PM10 at representative locations across Attica.

More than ten custom low-cost systems, developed with the University of West Attica, monitor NO2, O3 and PM2.5.

Visit the EMISSION platform

Systematic sensor calibration

Medium- and low-cost devices are regularly intercompared and calibrated against collocated reference-grade instruments at the Thissio Air Monitoring Station.

Monitoring equipment

Sensor systems used by APCG

The networks combine commercial monitoring systems, custom-built devices and portable instruments for fixed, mobile and personal-exposure measurements.

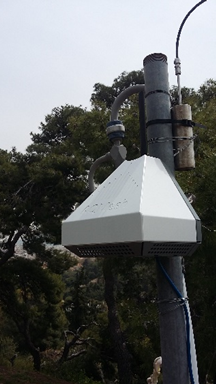

AQMesh medium-cost air-quality monitoring system
Medium-cost system

AQMesh

Monitoring of CO, NO2, O3, PM2.5 and PM10.

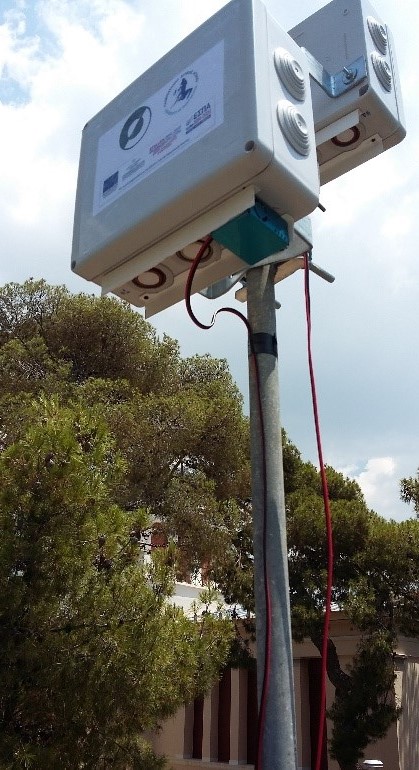

Custom low-cost air-quality monitoring system
Custom-built system

Multi-pollutant sensor

Electrochemical sensors for NO2 and O3, combined with optical PM2.5 measurements.

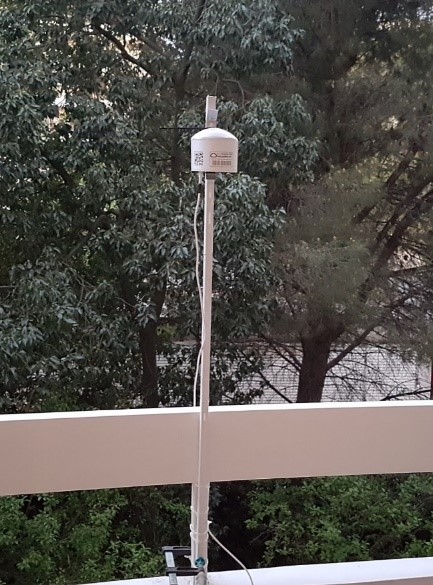

Low-cost optical PM2.5 monitor
Optical monitor

PM2.5 sensor

Compact optical monitoring device for particulate-matter concentrations in residential and urban locations.

Portable monitoring

Measuring personal exposure

APCG uses portable instruments for pedestrian, mobile and personal monitoring to improve the characterisation of population exposure to atmospheric pollutants.

  • Black-carbon micro-aethalometers
  • Optical particle counters
  • Personal exposure instruments
  • Passive gaseous-pollutant samplers
